Teradek Bolt 6 LT 1500 (1 Tx, 1 Rx)

$350 per day

Quantity
Add to Gear List

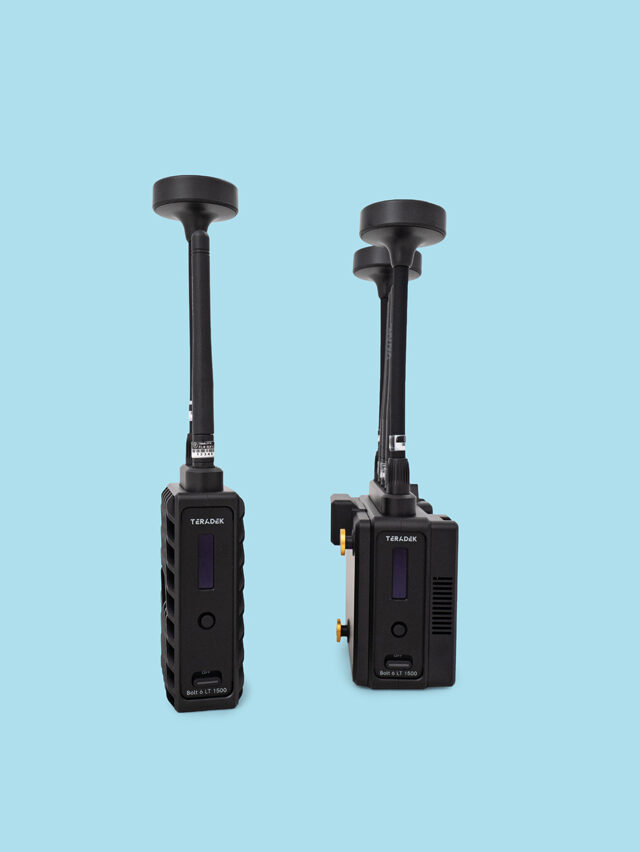

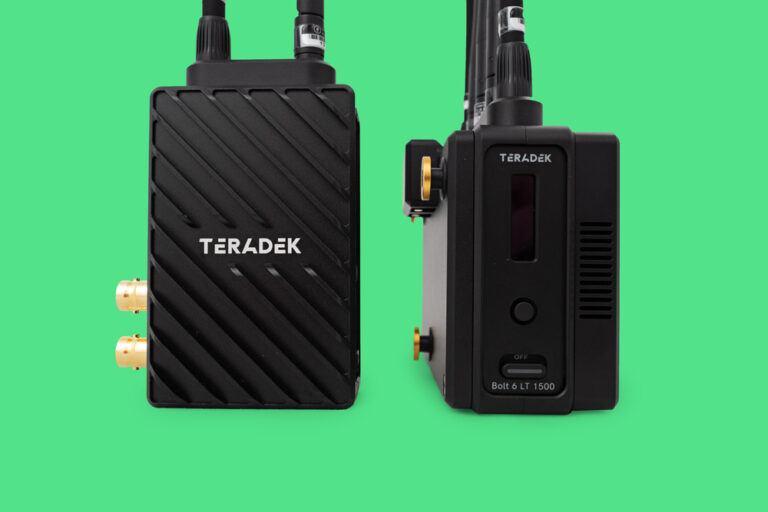

Transmit and receive lossless HD video from up to 1500′ line of sight with the Bolt 6 LT 1500 3G-SDI/HDMI Wireless RX/TX Kit from Teradek. The kit includes a wireless transmitter and receiver that can wirelessly receive up to 4K30 video with 10-bit 4:2:2 HDR support. The transmitter inputs up to UHD 4K30 video over HDMI or up to 1080p60 video via 3G-SDI, and the receiver outputs video via HDMI and 3G-SDI. A Gold mount battery plate is included to power the receiver with a professional Gold mount battery. Though it can transmit visually lossless video to any Bolt 4K series receiver with zero delay using the 5 GHz band, it requires a Bolt 6 device to transmit over the 6 GHz band.

The transmitter sends up to 4K30 video to any Bolt 6 or 4K series receiver, and it can also simultaneously transmit to up to six receivers. The system features improved metadata, range, and compatibility over its predecessors. The built-in AES-256 encryption with RSA 1024 key pairing protects your video from prying eyes, while noise rejection keeps your video clean no matter how many devices are using the wireless spectrum.

The Bolt 6 LT units are all cross-compatible, so you can transmit to different Bolt 6 or 4K series receiver models. The Bolt LT system also supports the transmission of timecode and start/stop triggers from the camera.

The system also supports a desktop Bolt Manager software application or the Bolt app for iOS or Android that easily connects via Bluetooth, both providing a spectrum analyzer, channel selection tools, and remote configuration.

  • Bolt 6 LT 1500 3G-SDI/HDMI Transmitter
  • Bolt 6 LT 1500 3G-SDI/HDMI Receiver w/ Gold Mount Passthrough Plates
  • Antenna Array Plate for Bolt 6
  • (8) V Antennas
  • (3) H Antennas
  • (5) RP-SMA Male to RP-SMA Male Cable
  • 2-Pin LEMO to AC Adapter
  • (2) 2-Pin LEMO to D-Tap Power Cable
  • 2-Pin LEMO to 2-Pin LEMO Cable
  • (2) Micro-USB to USB Type-A Cable
  • (2) SDI Cables
  • (2) HDMI Cables
  • Mounting Hardware
